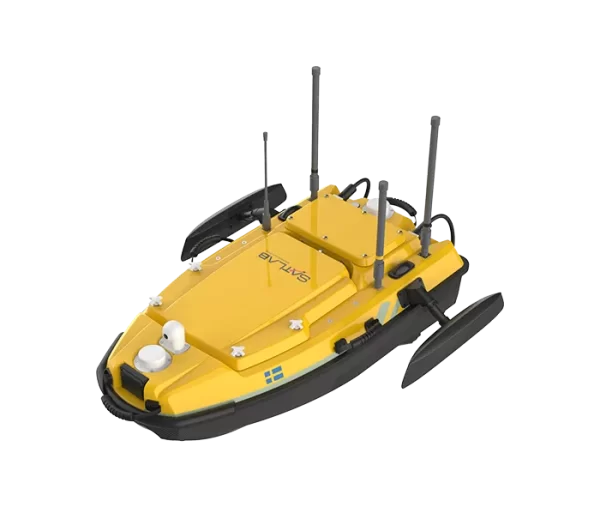

HydroBoat 1200 GEN2 USV
The HydroBoat 1200 GEN2 is Satlab’s next-generation compact multi-functional USV for marine surveying.It supports integration with the HydroBeam M2 multibeam echosounder, ADCP, side-scan sonar and water quality sensors, making it ideal for underwater topographic surveys, hydrological data collection and water quality monitoring.
Paired with the updated SLHydro USV Android app, it automates data acquisition for single-beam, multibeam and ADCP surveys. The platform features a built-in single-beam echosounder, a compact 1.05m length, and hot-swappable single/dual batteries. Combined with upgraded hardware, it ensures safer, more reliable survey operations.
Control System
Equipped with smart automatic operation, onboard data storage, GNSS & SBES data fusion, built-in 4G module and GNSS+IMU system to ensure steady positioning performance.
Software

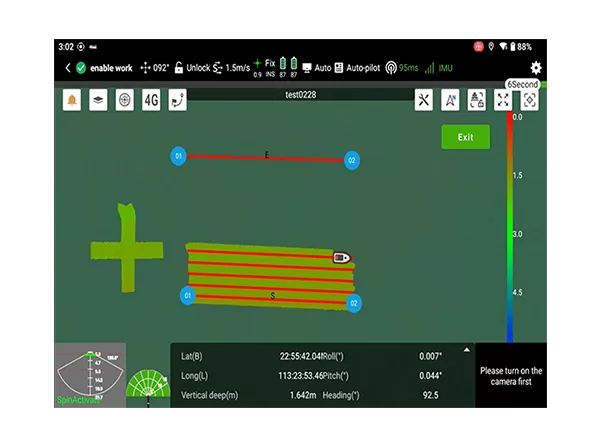

It supports intelligent survey route planning, automatic multi-type data collection, full safety functions, long-distance 4G connection and real-time camera monitoring.
Hardware
Compact 1050mm/29kg design features dual battery options with over 4 hours runtime, IP67 twin-hull structure, millimeter-wave radar avoidance and anti-tangle propellers.
Payload

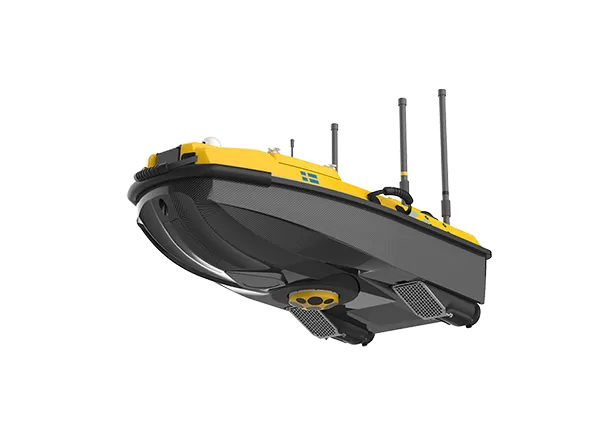

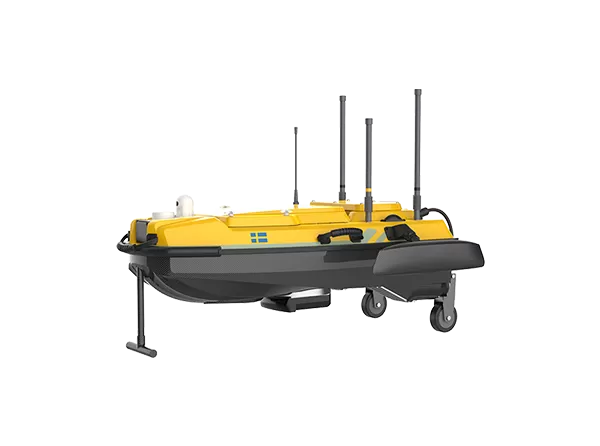

Supports up to 40kg payload, compatible with dual-frequency echosounder, multi-beam system, multi-brand ADCP and water quality monitors.
