Two Hours on Foot into a Colombian Cave, SL9 Captured the Space in 3D
Under the mountain cliffs of Suesca, Cundinamarca, Colombia, a dark cave sits inside humid rock layers. A local user carried the SatLab SL9 SLAM RTK through the mountain terrain for nearly two hours to answer a practical field question: can a handheld SLAM system create usable 3D data in a space with no illumination, narrow passages, wet ground, and complex rock geometry?
This was not a showroom scene.It was a real mountain route, a real underground space, and a complete field-to-point-cloud application built from the user’s own experience.
Location
Suesca, Cundinamarca, Colombia
Environment
No illumination / Humidity / Water / Confined space / Complex rock walls
Access
Approx. 2-hour mountain hike, with multiple ascents and descents
Device
SatLab SL9 SLAM RTK
Method
Handheld SLAM acquisition in a confined underground space
User Feedback
Homogeneous, consistent point cloud; stable trajectory; no deviation or processing issue reported
Additional Finding
Partial colorization was possible where the helmet headlamp acted as auxiliary light
Case snapshot: location, environment, device, acquisition method, and user feedback are compiled from the original user email and field materials.
For underground data acquisition, the first challenge is often not software or processing. It is whether the equipment can be carried to the site, whether the operator can keep moving inside the confined space, and whether the 3D data can grow steadily with the walking path.

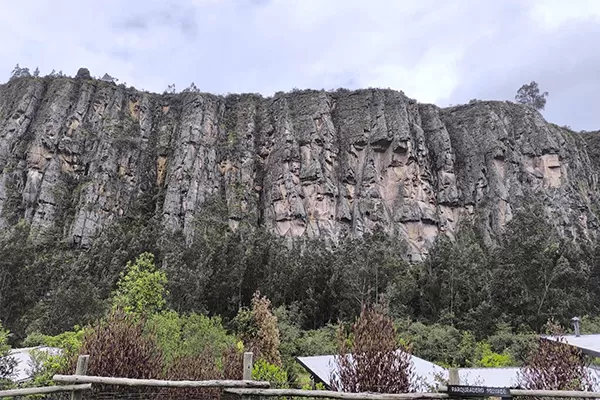

Mountain cliff environment around the cave: dense vegetation and significant terrain variation around the access area.

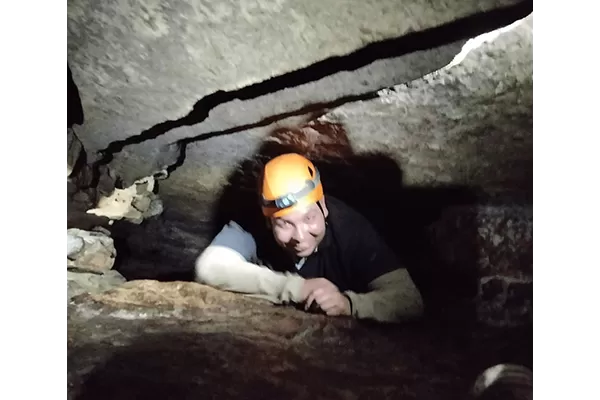

Low and narrow cave passages: the operator needed to move close to the rock walls, relying mainly on a helmet headlamp for light.
Inside the cave, there was no stable light source and the geometry was highly irregular. In this type of environment, photos only capture fragments of the scene. Traditional spot measurements or flat records also struggle to communicate the spatial relationship between the passage, the rock walls, the ceiling, and the floor.
What the user needed was a 3D record that could be rotated, sectioned, inspected, and archived. This is where the value of SL9 becomes direct: wherever the operator walks, the point cloud follows; the cave does not have to be reduced to a few photos, but can be turned into a reviewable 3D dataset.
User Field Feedback
“The results were very positive, generating a homogeneous and consistent point cloud with a high level of detail. Despite the limited space and complexity of the environment, the trajectory remained stable throughout the entire acquisition process, without any deviations or issues during data processing.”

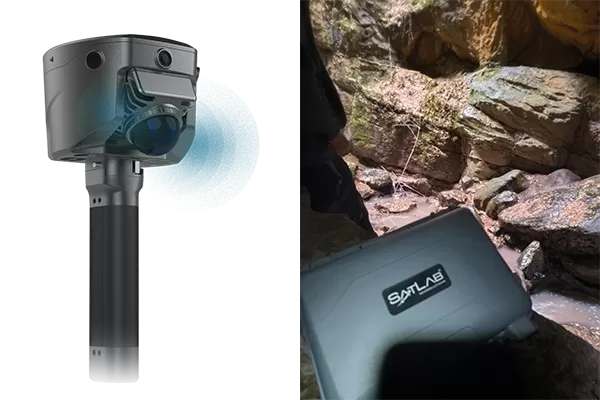

SL9 SLAM RTK was brought into the field. For mountain and underground applications, portability and fast deployment are part of the real workflow.
One practical finding also stood out: when the helmet-mounted headlamp was used as an auxiliary light source, partial colorization could be achieved in some areas. For no-light or low-light underground environments, this matters because selected structures can be recorded not only with shape, but also with visual context.
Point Cloud Overview: the acquisition trajectory runs through the cave, forming a continuous 3D representation of the passage and rock walls.

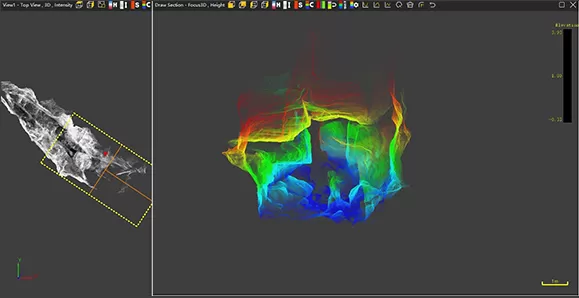

Section View: the relationship between the ceiling, side walls, and bottom of the cave can be reviewed from a cross-section perspective.

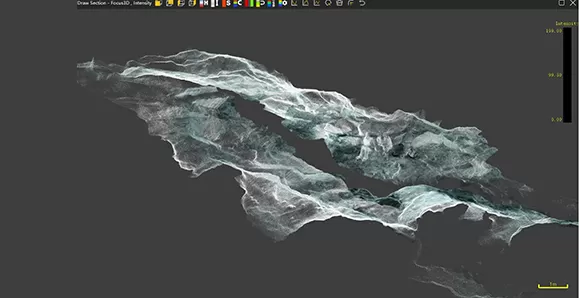

Height-Colored View: color variation helps reveal elevation changes, passage direction, and spatial layering inside the cave.

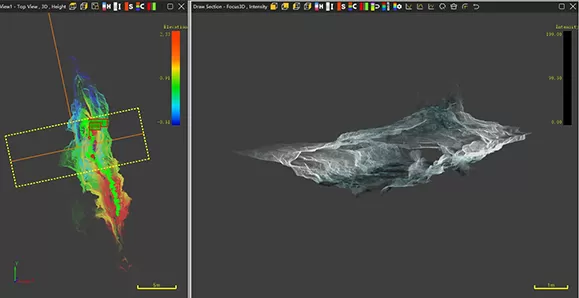

Intensity Section View: rock wall boundaries, surface relief, and cave contours become clearer in the sectional view
The most valuable part of this case is that SL9 was used in a real underground environment, facing distance, humidity, low light, narrow space, and complex geometry. The field data shows that SL9 can still deliver stable, continuous, and detailed point cloud results in this type of scenario.
- For underground spaces that cannot be fully explained by photos, point clouds provide more complete spatial evidence.
- For caves, mines, culverts, tunnels, and underground passages, handheld SLAM lowers the threshold for data acquisition in difficult spaces.
- For review, discussion, and documentation, 3D data communicates site conditions more clearly than isolated images.
- In no-light or low-light environments, auxiliary lighting can help support partial point cloud colorization and add more visual context to the record.
From the cave surroundings into the underground space, showing humidity, low light, and rock wall conditions.
A sectional view of the internal spatial relationship and rock wall details.
A walkthrough of the complete cave point cloud, showing the passage structure and acquisition trajectory.
A closer look at the intensity view and local cave contour details.
For caves, mines, tunnels, rock slopes, underground works, and emergency inspection scenarios, SL9 helps turn “going to the site” into “bringing the site back.” That is the practical strength of 3D mobile mapping: it does not replace professional judgment; it gives that judgment a more complete 3D evidence base.
One-Sentence Summary
In a humid, narrow, no-illumination cave in Colombia, reached after nearly two hours on foot, SatLab SL9 SLAM RTK produced a stable, continuous, and detailed 3D point cloud, turning a hard-to-describe underground space into data that can be viewed, sectioned, and reviewed.
The SL9 SLAM RTK user hiked nearly two hours into a cave in Suesca, Colombia, to capture an underground space with no illumination, humidity, water, and complex geometry. The final point cloud remained homogeneous and consistent, with a stable trajectory throughout the acquisition process. This real-world application shows how SL9 helps transform hard-to-reach underground spaces into clear, reviewable 3D evidence.
